Error State Kalman Filter (ESKF) for three-degree-of-freedom orientation estimation using IMU (gyroscope + accelerometer) and scalar forward velocity.

Go to MOKUKU-INS/3dof for more details.

Algorithm Flow (Overview)

  1. Load data — IMU CSV and trajectory odom.txt; clip IMU to trajectory time range.
  2. Bias estimation — Use first N seconds from segment start to estimate accelerometer and gyroscope biases from gravity and near-zero angular velocity.
  3. Filter loop (per IMU frame):
    • Predict: Integrate gyroscope to update R_wc; R_cm nearly constant; add process noise to P.
    • Update (when |dv/dt| below threshold): Compare accelerometer with expected specific force from kinematics (a_body = [0, dv/dt, 0] + ω×v, then subtract gravity); correct R_wc and R_cm via Kalman gain.
  4. Output — R_wc (vehicle-to-world), R_cm (device-to-vehicle); extract pitch for inclination.

Observation model: Expected specific force in IMU frame is h = R_cmᵀ · (a_body - R_wcᵀ·g), where a_body uses velocity derivative and Coriolis term. Residual y = acc_imu - h drives the correction.

Observability and Pitch Focus

Due to insufficient observation constraints, the filter is designed to focus on pitch angle estimation:

  • Pitch: Observable from the accelerometer (gravity projection and longitudinal acceleration). The filter corrects pitch using the accelerometer residual.
  • Yaw: Not observable from accelerometer alone; no magnetometer or other heading reference. Yaw drifts with gyroscope integration.
  • Roll: Assumed small; weakly observable in full 3D motion.

Overall angle estimation (especially yaw and total 3D rotation) is therefore relatively dependent on gyroscope integration. The accelerometer mainly constrains pitch and roll to a lesser extent. Evaluation metrics (e.g. mean pitch error) focus on pitch, which is the best-constrained degree of freedom.

Limitations

  • Yaw unobservable: No magnetometer or heading reference; yaw drifts with gyroscope integration. Total 3D rotation error can be large even when pitch is accurate.
  • 2D motion assumption: Vehicle moves primarily along the forward (Y) axis; lateral velocity is neglected. Significant lateral motion degrades the observation model.
  • External velocity required: Filter needs scalar forward velocity (from odometry, GNSS, or wheel encoder). No velocity estimation from IMU alone.
  • Axis/sign convention sensitive: Accelerometer sign depends on sensor mounting (inverse_imu_acc). Misalignment causes systematic pitch bias.
  • Bias estimation from static segment: Bias is estimated from the first N seconds of the processing segment. Thermal drift or motion during this period affects accuracy.
  • dv/dt noise: Velocity derivative amplifies noise; large dv/dt triggers update skip. Very noisy velocity input degrades pitch estimation.

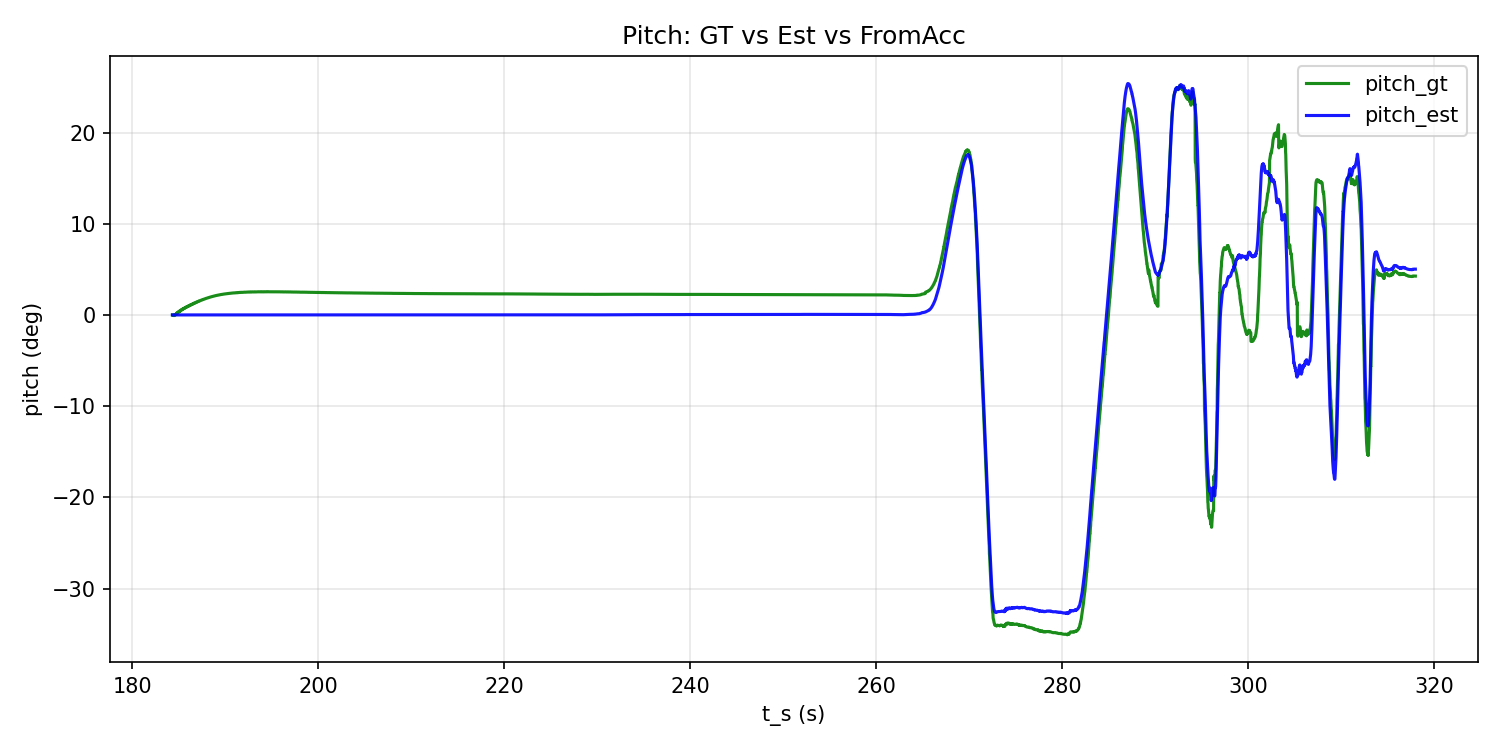

Pitch estimation
